Product Summary

The ISO1050 is a galvanically isolated CAN transceiver that meets or exceeds the specifications of the ISO11898 standard. The device has the logic input and output buffers separated by a silicon oxide (SiO2) insulationbarrier that provides galvanic isolation of up to 4000 VPEAK. Used in conjunction with isolated power supplies, thedevice prevents noise currents on a data bus or other circuits from entering the local ground and interfering withor damaging sensitive circuitry.As a CAN transceiver, the device provides differential transmit capability to the bus and differential receivecapability to a CAN controller at signaling rates up to 1 megabit per second (Mbps). Designed for operation inespecially harsh environments, the device features cross-wire, overvoltage and loss of ground protection from–27 V to 40 V and overtemperature shut-down, as well as a –12 V to 12 V common-mode range.The ISO1050 is characterized for operation over the ambient temperature range of –55°C to 105°C

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

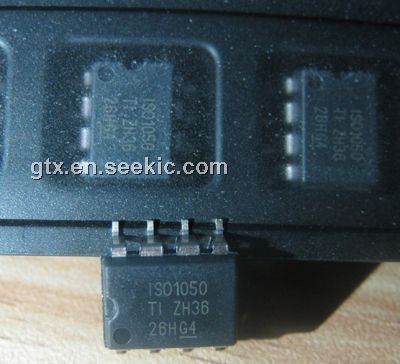

ISO1050DUB
ISO1050DUB
Texas Instruments
Isolator Interface IC Iso 5V CAN Xcvr
Data Sheet
0-1: $2.51
1-25: $2.28
25-100: $1.58
100-250: $1.52
ISO1050DUBR
ISO1050DUBR
Texas Instruments
Isolator Interface IC Iso 5V CAN Xcvr
Data Sheet
0-1: $2.68
1-25: $2.15
25-100: $1.90
100-250: $1.72
250-350: $1.72
ISO1050EVM
ISO1050EVM
Texas Instruments
Interface Development Tools ISO1050 Eval Mod
Data Sheet
0-1: $33.48
ISO1050DW
ISO1050DW
Texas Instruments
Isolator Interface IC Isolated 5V CAN Xcvr
Data Sheet
0-1: $3.53
1-25: $2.83
25-100: $2.58
100-250: $2.33
ISO1050DWR
ISO1050DWR
Texas Instruments
Isolator Interface IC Isolated 5V CAN Xcvr
Data Sheet
0-1485: $1.58
1485-2000: $1.52
