Product Summary

The LF198/LF298/LF398 are monolithic sample-and-holdcircuits which utilize BI-FET technology to obtain ultra-highdc accuracy with fast acquisition of signal and low drooprate. Operating as a unity gain follower, dc gain accuracy is0.002% typical and acquisition time is as low as 6 μs to0.01%. A bipolar input stage is used to achieve low offsetvoltage and wide bandwidth. Input offset adjust is accom-plished with a single pin, and does not degrade input offsetdrift. The wide bandwidth allows the LF198 to be included in-side the feedback loop of 1 MHz op amps without having sta-bility problems. Input impedance of 1010Ω allows highsource impedances to be used without degrading accuracy

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

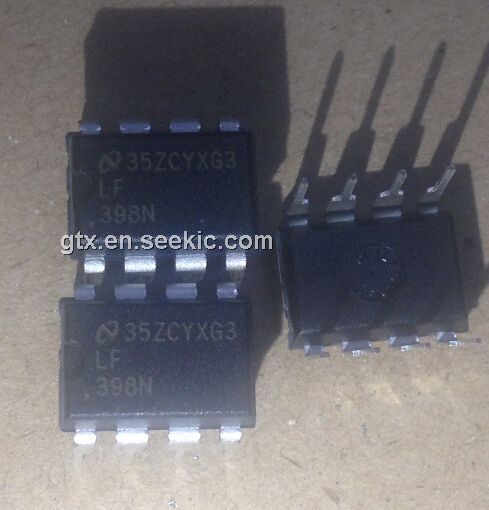

LF398N
LF398N
National Semiconductor (TI)
Sample & Hold Amplifiers
Data Sheet
0-720: $0.46
720-1000: $0.44
1000-2520: $0.36
2520-5000: $0.34
LF398N/NOPB
LF398N/NOPB
National Semiconductor (TI)
Sample & Hold Amplifiers MONOLITHIC SAMPLE & HOLD CIRCUIT
Data Sheet
0-1: $0.92
1-25: $0.73
25-100: $0.64
100-250: $0.57
LF398N8
LF398N8

IC AMP PREC SAMPLE & HOLD 8-DIP
Data Sheet
0-3850: $1.04
LF398N8#PBF
LF398N8#PBF
Linear Technology
IC AMP PREC SAMPLE & HOLD 8-DIP
Data Sheet
1-800: $1.04
